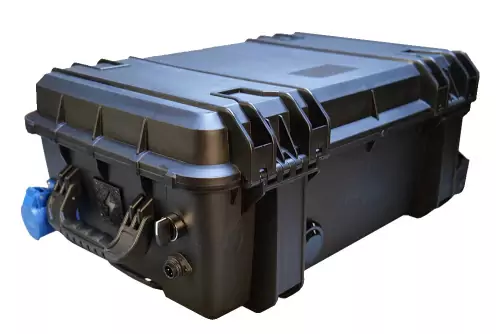

The NXTGENbps Fox portable battery is designed to provide portable electrical power up to a maximum of 1kW, with a 230VAC industrial output.
The battery has its own carry handles and wheels for added portability.
An LED indicator is provided to show the charge state of the battery when charging or discharging.
We named the 1kW/2.5kWh Portable Battery the NXTGENbps Fox because it’s an agile light battery, typical use might be an ENG camera crew set up, or small lighting set up at an event or film location. News crews and small event locations operate in urban cities or countryside environment that a Fox would also inhabit.
Mains input supply ratings:
Mains Voltage: 230V +/- 10%
Frequency: 50Hz
Maximum Current: 3.3A
Mains output supply ratings:
Mains Voltage: 230V +/- 10%
Frequency: 50Hz +/- 0.1%
Output Power: 1000W Continuous, 2000W for 5 seconds
Output Ripple: <3%
Battery Capacity: 2500Wh
Idle Time: 105h
Operating Temperature: Discharging -10C – 55C, Charging 0C – 55C
Storage: -10oC – 60oC
IP Rating: IP54
Dimensions: Per Case 260x610x410mm
Weight: 22kg

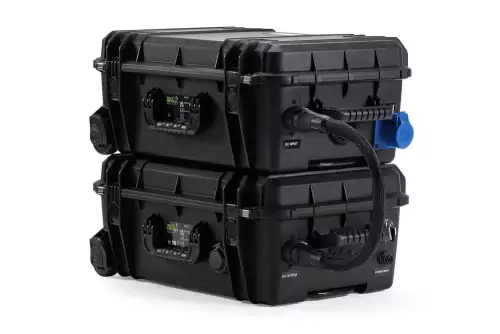

The NXTGENbps Meerkat portable battery storage system is designed to provide portable electrical power up to a maximum of 16A, with a 230VAC industrial output.
The system is made up of one battery box and one power conversion box, connected through the supplied cable. The boxes are stacked on top of each other and connected to create the full system. Each box has its own carry handles and wheels for added portability.
The 5,000Wh lithium-ion battery can be charged separately from the power conversion box through its integrated charging system when the AC charger cable is connected to the charger input.
An LED indicator is provided to show the charge state of the battery when charging or discharging.
The 4kW/5kWh Portable Battery creative name is taken from inspiration from the teamwork among meerkats within nature.
Mains input supply ratings:
Mains Voltage: 230V +/- 10%
Frequency: 50Hz
Maximum Current: 5.5A
Mains output supply ratings:
Mains Voltage: 230V +/- 10%
Frequency: 50Hz +/- 0.1%
Output Power: 4000W Continuous, 8000W for 5 seconds
Output Ripple: <3%
Battery Capacity: 5000Wh
Idle Time: 165h
Operating Temperature: Discharging -10C – 55C, Charging 0C – 55C
IP Rating: IP54
Dimensions: Per Case 260x610x410mm
Weight: Battery ~44kg, Brain ~16kg

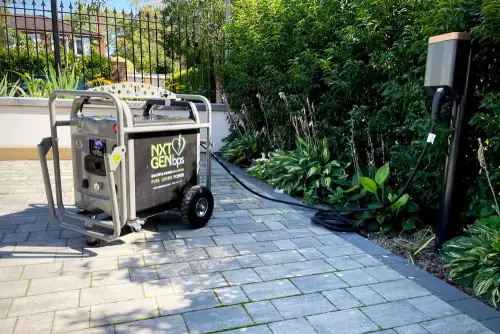

The NXTGENbps Goat is 5kW/4.8kh and is expandable up to a max of 139.2 kWh via the NXTGENbps Billy Goat 9.6kWh. Ideal for various applications including on-location lighting, video setups, production offices, catering, DIT, charging stations, heavy-duty tools, camper vans, houseboats, home storage, and more.
The NXTGENbps Goat portable power solution features a built-in Pure Sine inverter for safeguarding sensitive equipment. It accepts various power sources such as Solar Capture, DC and AC inputs. It can be quickly charged via a Type 2 car charger, achieving a full 0-100% charge in 45 mins (7kw charger). The generator can be used while charging, extending kWh capacity.
Extremely Robust design Cast Aluminium and Carbon Fibre casing suitable for all conditions IP67, We have taken the idea of clean portable power to a new level for professional users.
