NXTGENbpsManufacturer:
The MeerkatModel:

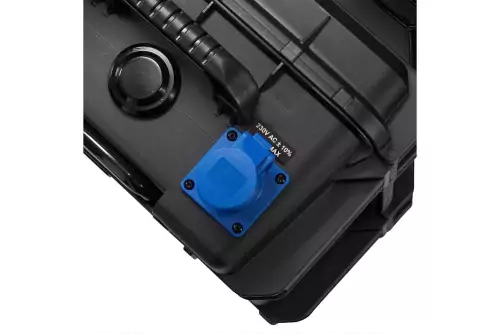

The NXTGENbps Meerkat portable battery storage system is designed to provide portable electrical power up to a maximum of 16A, with a 230VAC industrial output.

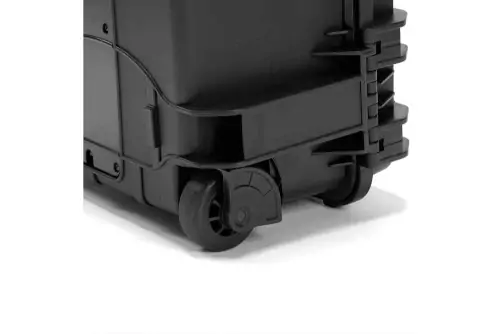

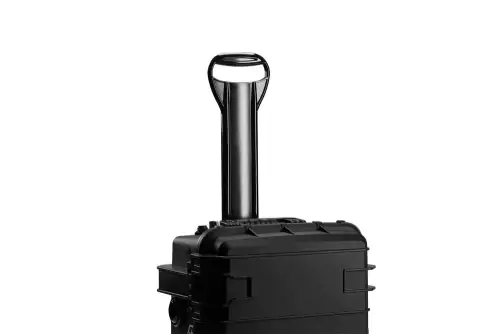

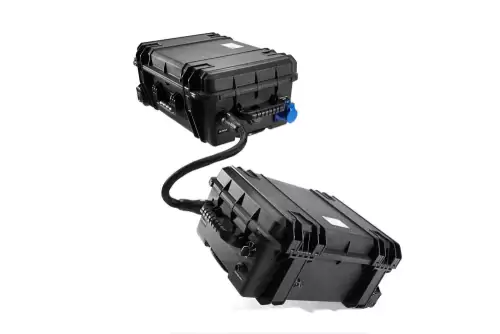

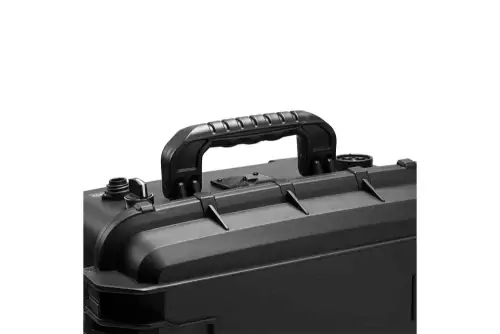

The system is made up of one battery box and one power conversion box, connected through the supplied cable. The boxes are stacked on top of each other and connected to create the full system. Each box has its own carry handles and wheels for added portability.

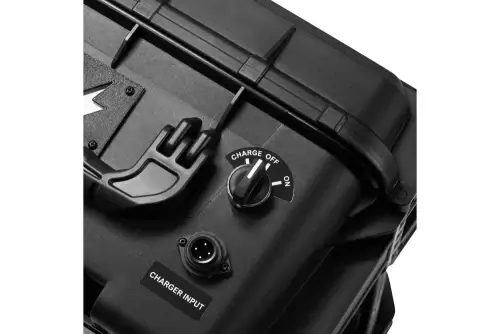

The 5,000Wh lithium-ion battery can be charged separately from the power conversion box through its integrated charging system when the AC charger cable is connected to the charger input.
An LED indicator is provided to show the charge state of the battery when charging or discharging.
The 4kW/5kWh Portable Battery creative name is taken from inspiration from the teamwork among meerkats within nature.
Mains input supply ratings:
Mains Voltage: 230V +/- 10%
Frequency: 50Hz
Maximum Current: 5.5A
Mains output supply ratings:
Mains Voltage: 230V +/- 10%
Frequency: 50Hz +/- 0.1%
Output Power: 4000W Continuous, 8000W for 5 seconds
Output Ripple: <3%
Battery Capacity: 5000Wh
Idle Time: 165h
Operating Temperature: Discharging -10C – 55C, Charging 0C – 55C
IP Rating: IP54
Dimensions: Per Case 260x610x410mm
Weight: Battery ~44kg, Brain ~16kg
